Description

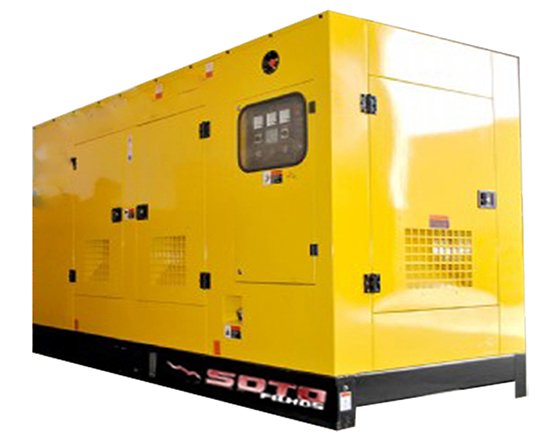

This Cummins®  Power Generation commercial generator set is a fully integrated power generation system,providing optimum performance, reliability, and versatility for stationary standby, prime power, and continuous duty applications

Features

Cummins® Heavy-Duty Engine - Rugged 4-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.

Permanent Magnet Generator (PMG) - Offers enhanced motor starting and fault clearing short circuit capability.

ISO8528

This generator set is available with CE certification.

This generator set has been designed to comply with ISO8528 regulation.

This generator set is designed in facilities certified to ISO9001 and manufactured in
facilities certified to ISO9001 or ISO9002.

Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class H insulation.

Control System - Standard PowerCommand® electronic control provides total system integration including remote start/stop, precise frequency and voltage regulation, alarm and status message display, AmpSentry protection, output metering, auto-shutdown.

Cooling System - Standard integral set-mounted radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.

Warranty and Service - Backed by a comprehensive warranty and worldwide distributor network.

	Standby Rating		Prime Rating		Emissions Compliance	Datasheet
Model	50Hz kVA (kW)	60Hz kW (kVA)	50Hz kVA (kW)	60Hz kW (kVA)	TA Luft – EU Stage	50Hz	60Hz
C1100 D5e	1100 (880)	N/A	1000 (800)	N/A	2g TA Luft	DS43-CPGK	N/A
C1400 D5	1400 (1120)	N/A	1250 (1000)	N/A	N/A	DS44-CPGK	N/A
C1400 D5e	1400 (1120)	N/A	1250 (1000)	N/A	2g TA Luft	DS45-CPGK	N/A
C1675 D5	1675 (1340)	N/A	1400 (1120)	N/A	N/A	DS46-CPGK	N/A
C1675 D5A	1675 (1340)	N/A	1500 (1200)	N/A	N/A	DS47-CPGK	N/A
C1250 D6	N/A	1270 (1588)	N/A	1120 (1400)	N/A	DS84-CPGK	N/A
C1500 D6	N/A	1545 (1931)	N/A	1286 (1608)	N/A	DS85-CPGK	N/A

Generator Set Specifications

Governor Regulation Class    ISO8528 G2
Voltage Regulation, No Load to Full Load    ± 1%
Random Voltage Variation    ± 1%
Frequency Regulation    Isochronous
Random Frequency Variation    ±0.25%
EMC Compatibility    BS EN 61000-6-4 / BS EN 61000-6-2

Engine Specifications

Design    4 cycle, in line, turbo Charged and after-cooled
Bore    158.8 mm (6.25 in.)
Stroke    158.8 mm (6.25 in.)
Displacement    50 liter (3067in.3)
Cylinder Block
engine    Sixteen-cylinder vee formation, direct injection, four-cycle diesel
Battery Capacity    1800 amps at ambient temperature 32°F (0°C)
Battery Charging Alternator    55 amps
Starting Voltage    24-volt, negative ground
Fuel System    Direct injection
Fuel Filter    Dual spin on paper element fuel filters with standard water separator.
Air Cleaner Type    Dry replaceable element
Lube Oil Filter Type(s)    Spin-on paper element full flow and bypass lube oil filters.
Standard Cooling System    104°F (40 °C) ambient radiator,

Alternator Specifications

Design    Brushless, 4 pole, drip proof revolving field
Stator    2/3 pitch
Rotor    Direct coupled by flexible disc
Insulation System    Class H
Standard Temperature Rise
Exciter Type    PMG (Permanent Magnet Generator)
Phase Rotation    A (U), B (V), C (W)
Alternator Cooling    Direct drive centrifugal blower fan
AC Waveform Total Harmonic Distortion    No load < 1.5%. Non distorting balanced linear load < 5%
Telephone Influence Factor (TIF)    <50 per NEMA MG1-22.43
Telephone Harmonic Factor (THF)    No load < 1.5%. Non distorting balanced linear load < 5%

Available Voltages

50Hz   Line – Neutral / Line – Line    60Hz   Line – Neutral / Line – Line
• 220/380    • 1905/3300    • 219/380    • 2400/4160
• 230/400    • 3640/6300    • 254/440    • 7200/12470
• 240/415    • 3810/6600    • 277/480    • 7620/13200
• 254/440    • 6350/11000    • 347/600    • 7970/13800


Generator Set Options

Engine
• Heavy Duty air filter
• Water jacket heater 220/240 v
Cooling
• Antifreeze 50/50 (Ethylene glycol)
Enclosure
• High-Cube 40ft Container

Alternator
• Alternator heater
• High humidity isolation
• Exciter voltage regulator (PMG)
Control Panel
PCC3100
• 3 pole Main Circuit Breaker
• 4 pole Main Circuit Breaker

Warranty
• 5 years for Standby application
• 2 years for Prime application
Silencer
• 9 dB attenuation critical silencer
• 25 dB residential - delivered loose

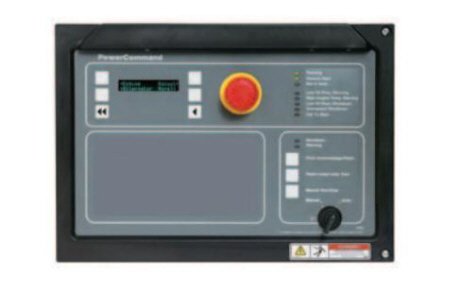

Control System - PCC3100
The PowerCommand™ 3100 Control is a
microprocessor-based generator set monitoring, and
control system. The control provides an operator
interface to the genset, digital voltage regulation, digital
governing and generator set protective functions.
The PowerCommand™ 3100 generator set control is
suitable for use on a wide range of generator sets in
nonparalleling and paralleling applications.
The PowerCommand™ Control can be configured for any
frequency, voltage and power connection configuration
from 120 to13,800 VAC for for 50Hz or 60Hz operation.
Power for the control is derived from the generator set
starting batteries. The control functions over a voltage
range from 8VDC to 35VDC.

Major Features
• Digital Governing and Voltage Regulation, including digital overcurrent fault regulation.
• Digital Voltage Regulation with 3-phase sensing.
• AmpSentry™ Protection for true alternator overcurrent protection.
• Analog and Digital AC Output Metering.
• Battery Monitoring System to sense and warn against a weak battery condition.
• Digital Alarm and Status Message Display.
• Generator set Monitoring: Displays status of all critical engine and alternator generator set functions.
• Smart Starting Control System: Integrated fuel ramping to limit black smoke and frequency overshoot.
• Advanced Serviceability using InPower™, a PC-based software service tool.

Control System
Includes all functions to locally or remotely start and stop, and protect the generator set.
Control Switch - RUN/OFF/AUTO
OFF Mode - the generator set is shut down and cannot be started.
RUN mode the generator set will execute its start sequence.
AUTO mode, the generator set can be started with a start signal from a remote device.Base Engine Protection:
Overspeed shutdown
Low Oil Pressure Warning / Shutdown
High Engine Temperature Warning / Shutdown
Underspeed / Sensor Fail Shutdown
Fail to Start / Fail to Crank
Low / high battery voltage

LED Indicating Lamps – includes LED indicating
lamps for the following functions:
Not-in-auto mode
Common wiring
Shutdown
Phase and scale indication
Fault reset switch. Allows the opperator to reset the control after warning or shutdown
Emergency stop switch - imediately shuts down the generator set operation
Emergency Stop Switch. Immediate shut down of the generator set on operation.

Base Engine Protection:
Overspeed shutdown
Low Oil Pressure Warning / Shutdown
High Engine Temperature Warning / Shutdown
Underspeed / Sensor Fail Shutdown
Fail to Start / Fail to Crank
Low / high battery voltage

Options
Integrated PowerCommand Digital Paralleling Controls
Key Type Mode Selector Switch
Exhaust Temperature Monitoring
PowerCommand Network
Refer to the PowerCommand Controls Technical Bulletin
for detailed information
(S1025C-Non-Paralleling / S1005c-Paralleling)

Ratings Definitions

Emergency Standby Power (ESP):
Applicable for supplying power to varying electrical load
for the duration of power interruption of a reliable utility
source. Emergency Standby Power (ESP) is in
accordance with ISO 8528. Fuel Stop power in
accordance with ISO 3046, AS 2789, DIN 6271 and BS
5514.

Limited-Time running Power (LTP):

Applicable for supplying power to a constant electrical
load for limited hours. Limited Time Running Power (LTP)
is in accordance with ISO 8528.

Prime Power (PRP):
Applicable for supplying power to varying electrical load
for unlimited hours. Prime Power (PRP) is in accordance
with ISO 8528. Ten percent overload capability is
available in accordance with ISO 3046, AS 2789, DIN
6271 and BS 5514.

Base Load (Continuous) Power (COP):
Applicable for supplying power continuously to a
constant electrical load for unlimited hours. Continuous
Power (COP) in accordance with ISO 8528, ISO 3046, AS
2789, DIN 6271 and BS 5514.

Model	Dim “A” mm	Dim “B” mm	Dim “C” mm	Set weight* dry kg	Set w. wet kg
C1500D6	5690	2033	2330	10024	10326
