Description
This Cummins® Power Generation commercial generator set is a fully integrated power generation system,providing optimum performance, reliability, and versatility for stationary standby, prime power, and continuous duty applications
Features
Cummins® Heavy-Duty Engine - Rugged 4-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.
Permanent Magnet Generator (PMG) - Offers enhanced motor starting and fault clearing short circuit capability.
ISO8528
This generator set is available with CE
certification.
This generator set has been designed to
comply with ISO8528 regulation.
This generator set is designed in facilities certified to ISO9001 and manufactured in
facilities certified to ISO9001 or ISO9002.
Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class H insulation.
Control System - Standard PowerCommand® electronic control provides total system integration including remote start/stop, precise frequency and voltage regulation,
alarm and status message display, AmpSentry protection, output metering, auto-shutdown.
Cooling System - Standard integral set-mounted radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.
Warranty and Service - Backed by a comprehensive warranty and worldwide distributor network.
|
Standby Rating |
Prime Rating |
Emissions Compliance |
Datasheet |
Model |
50Hz
kVA (kW) |
60Hz
kW (kVA) |
50Hz
kVA (kW) |
60Hz
kW (kVA) |
TA Luft – EU Stage |
50Hz |
60Hz |
C825D5 |
825 (660) |
N/A |
750 (600) |
N/A |
4g TA Luft |
DS32-CPGK |
N/A |
C900D5 |
900 (720) |
N/A |
820 (656) |
N/A |
4g TA Luft |
DS33-CPGK |
N/A |
C750D6 |
N/A |
750 (938) |
N/A |
680 (850) |
N/A |
N/A |
DS77-CPGK |
C800D6 |
N/A |
800 (1000) |
N/A |
725 (906) |
N/A |
N/A |
DS78-CPGK |
Generator Set Specifications
Governor Regulation Class ISO8528 G2
Voltage Regulation, No Load to Full Load ± 0.5%
Random Voltage Variation ± 0.5%
Frequency Regulation Isochronous
Random Frequency Variation ± 0.25%
EMC Compatibility BS EN 61000-6-4 / BS EN 61000-6-2
Engine Specifications
Design 4 cycle, in line, turbo Charged and after-cooled
Bore 169.9 mm (6.69 in.)
Stroke 169.9 mm (6.69 in.)
Displacement 23.15 liters (1413 in.3)
Cylinder Block Cast iron, 6 cylinder
Battery Capacity 1800 amps at ambient temperature 0°F to 32°F (-18°C to 0°C)
Battery Charging Alternator 35 amps
Starting Voltage 24 volt, negative ground
Fuel System Direct injection
Fuel Filter Spin on fuel filters with water separator
Air Cleaner Type Dry replaceable element with restriction indicator
Lube Oil Filter Type(s)
filters Fleetguard dual venturi spin on, combination full flow and bypass
Standard Cooling System 122°F (50°C) ambient radiator
Alternator Specifications
Design Brushless, 4 pole, revolving field
Stator 2/3 pitch
Rotor Single bearing, flexible disc
Insulation System Class H
Standard Temperature Rise 125º C Standby
Exciter Type PMG (Permanent Magnet Generator)
Phase Rotation A (U), B (V), C (W)
Alternator Cooling Direct drive centrifugal blower fan
AC Waveform Total Harmonic Distortion No load < 1.5%. Non distorting balanced linear load < 5%
Telephone Influence Factor (TIF) <50 per NEMA MG1-22.43
Telephone Harmonic Factor (THF) <3%

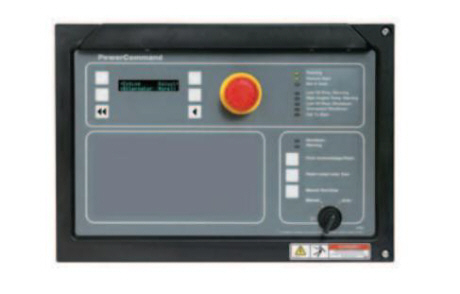

Control System - PCC2100
The PowerCommand™ 2100 Control is a
microprocessor-based generator set monitoring, and
control system.
The control provides an operator interface to the genset,
digital voltage regulation, digital governing and generator
set protective functions.
The PowerCommand™ 2100 generator set control is
suitable for use on a wide range of generator sets in
nonparalleling applications.
The PowerCommand™ Control can be configured for any
frequency, voltage and power connection configuration
from 120 to 600VAC for for 50Hz or 60Hz operation.
Power for the control is derived from the generator set
starting batteries. The control functions over a voltage
range from 8VDC to 35VDC.
Major Features
• 12 or 24 VDC Battery Operation.
• Digital Engine Speed Governing (optional) to provide
isochronous frequency regulation.
• Digital Voltage Regulation with 3-phase sensing.
• AmpSentry™ Protection for true alternator overcurrent
protection.
• Digital AC Output Metering with Optional Analog
Metering.
• Battery Monitoring System to sense and warn against a
weak battery condition.
• Digital Alarm and Status Message Display.
• Generator set Monitoring: Displays status of all critical
engine and alternator generator set functions.
• Smart Starting Control System: Integrated fuel ramping
to limit black smoke and frequency overshoot.
Control System
Includes all functions to locally or remotely start and
stop, and protect the generator set.
Control Switch - RUN/OFF/AUTO
OFF Mode - the generator set is shut down and
cannot be started.
RUN mode the generator set will execute its start
sequence.
AUTO mode, the generator set can be started with a
start signal from a remote device.
LED Indicating Lamps – includes LED indicating
lamps for the following functions:
Generator set running
Not-in-auto mode
Common warning
Five LED indicating lamps that are configurable for
colour and function
Low oil pressure warning
High engine temperature warning
Low oil pressure shutdown
Overspeed shutdown
Fail to start
Emergency Stop Switch. Immediate shut down of the
generator set on operation.
Base Engine Protection:
Overspeed shutdown
Low Oil Pressure Warning / Shutdown
High Engine Temperature Warning / Shutdown
Underspeed / Sensor Fail Shutdown
Fail to Start / Fail to Crank
Low / high battery voltage
Options
Analog AC Metering Panel
Key Type Mode Selector Switch
Exhaust Temperature Monitoring
PowerCommand Network
CAN Engine Interface (Optional on Some Models)
Refer to the PowerCommand Controls Technical Bulletin
for detailed information (S1409d)
Ratings Definitions
Emergency Standby Power (ESP):
Applicable for supplying power to varying electrical load
for the duration of power interruption of a reliable utility
source. Emergency Standby Power (ESP) is in
accordance with ISO 8528. Fuel Stop power in
accordance with ISO 3046, AS 2789, DIN 6271 and BS
5514.
Limited-Time running Power (LTP):
Applicable for supplying power to a constant electrical
load for limited hours. Limited Time Running Power (LTP)
is in accordance with ISO 8528.
Prime Power (PRP):
Applicable for supplying power to varying electrical load
for unlimited hours. Prime Power (PRP) is in accordance
with ISO 8528. Ten percent overload capability is
available in accordance with ISO 3046, AS 2789, DIN
6271 and BS 5514.
Base Load (Continuous) Power (COP):
Applicable for supplying power continuously to a
constant electrical load for unlimited hours. Continuous
Power (COP) in accordance with ISO 8528, ISO 3046, AS
2789, DIN 6271 and BS 5514.
|
Model |
Dim “A” mm |
Dim “B” mm |
Dim “C” mm |
Set weight* dry kg |
Set w. wet kg |
|
C750 D6 |
4266 |
1879 |
2052 |
6387 |
6528 |
vendas@sotofilhos.com.br / 17 3012-6130 / 8129-7150 / 9172-3934
